JET 8000 3D AOISolve the problem of your parts tilting and height measurement
3D AOI Optical Inspection Machine
JET 8000 3D AOI
Solve the problem of your parts tilting and height measurement

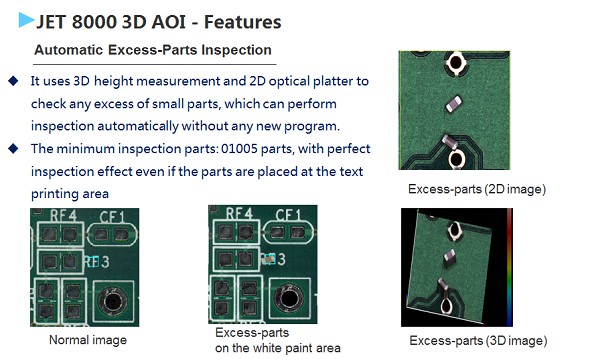

For years,ElectronicManufacturing have been using 2D AOI to detect defects on their product .But due to lacking of 3D information ,2D AOI have some blind-spots, It unable to detect some kind of defects such as chip component tilt , IC tilt, Connector tilt, small part missing or shifting ,IC pin lifting ….etc. Causing either fault skip or false reject frequently , so JET 8000 3D AOI is designed to overcome those problems mention above ,it does all the 3D measurement necessary with highly accuracy thus achieves a more complete optical inspection than a 2D AOI does

01
Application Range
Application Range


02
System Performance
System Performance
03
Feature Description

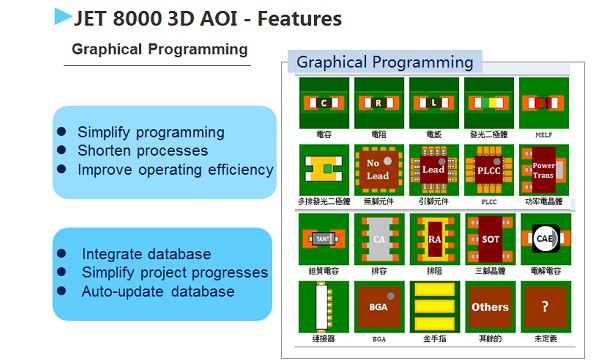

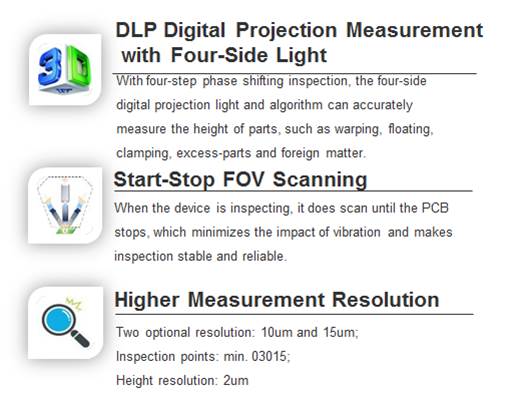

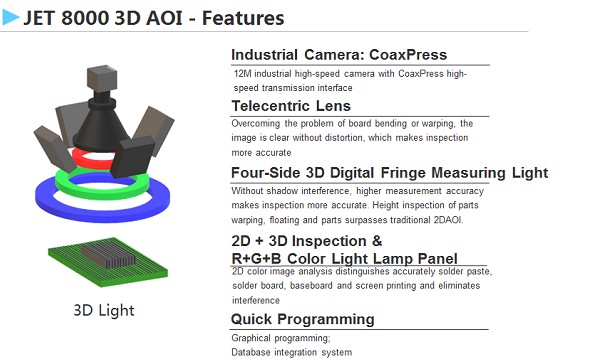

Feature Description

04
Specifications
Specifications
