JET 3000 In Circuit Tester
3000 ML / XL IN LINE
Fully automated testing, complete testing, products require no employee touch, reducing the risk caused by static electricity discharge.
The JET 3000 ML/XL fully automated IN LINE inspection equipment solves manufacturing industry issues related to personnel, equipment, and testing in unmanned production processes. It enables you to improve yield, shorten lead times, and enhance production and testing efficiency. The equipment offers real-time monitoring, inspection history tracing, quality analysis reports, and anomaly management. It provides automated information to quickly rectify process deficiencies.
01
Application Range
Application Range
lUnique 4 cores ICT machine in the industry
lCan performance the functional testing of four sub-pieces at the same time, it doesn’t need extra time
lCan achieve all ICT system and functional testing
lJET3000 can programming on each Pin of the Digital Board
lUser friendly interface, more convenient and faster for programming
lAccuracy on ICT system and functional testing
lPrecise optical scale to control the depth on pressing process, it can manage all height of fixtures
02
System Performance
System Performance
Can achieve all ICT system and functional testing
lMulti-Core
lAnalog Testing
lDigital Testing
lOn-Board Programming
lBoundary Scan Testing
lConnection Scan Testing
lSystem Function Testing
03
Feature Description
Feature Description

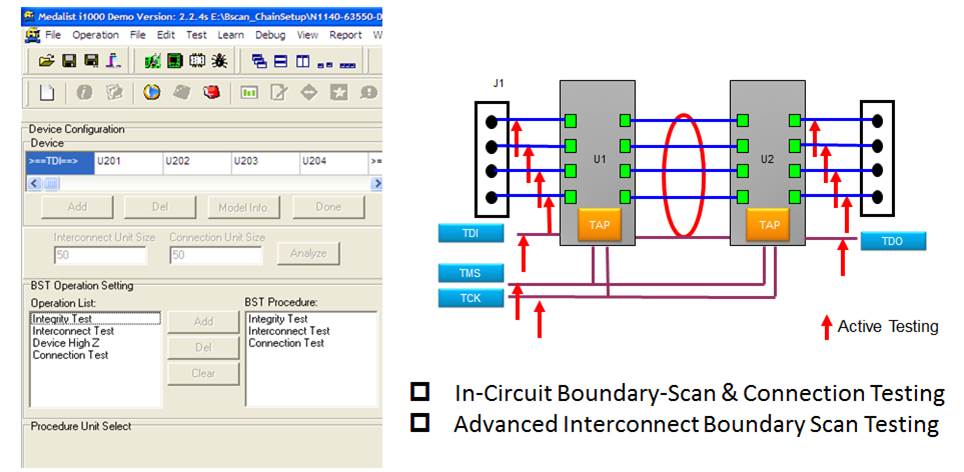

In-circuit Boundary Scan
04
Specifications
Specifications
On-Board Programming (Optional)
l Graphical interface for faster SW editing
lSPI/I2C library
lPattern speed: 20MHz
l 8 Different channel, which can write programs on 8 individual board at the same time during the testing
l Up to 16MBit Memory speed for writing and verifying
l Provide CRC authentication mode
l If data is bigger than 16-Mbit，Hi-Speed USB mode is active
l Programmable logic level (1.2V~3.6V), resolution 1.22mV
l Compatible with most products on the market
